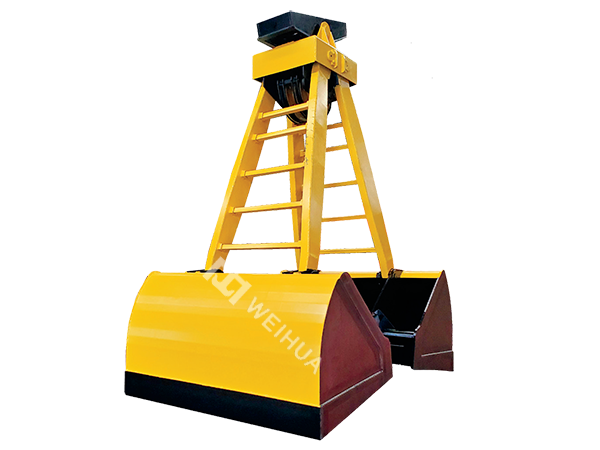

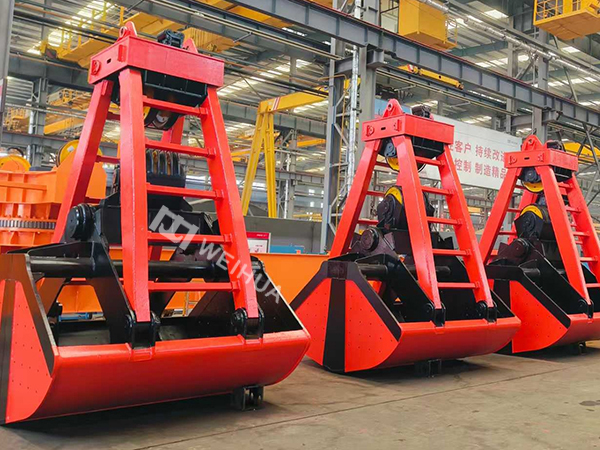

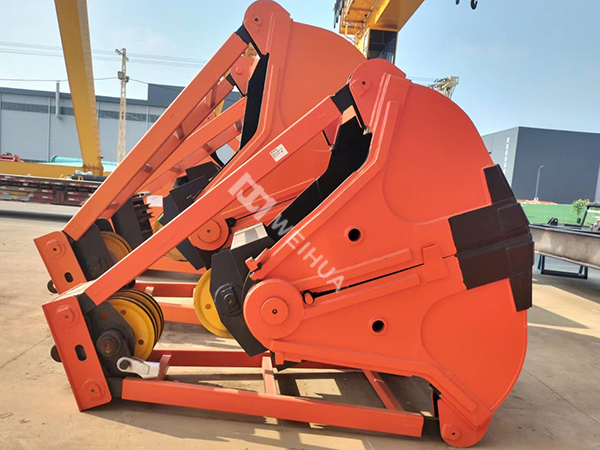

Grab bucket is a kind of lifting device for loading and unloading bulk materials by crane, which is widely used in ports, stations, mines and storage yards.
1. The strut is a closed welded structure, independent force transmission, stability, lateral bending ability is good;
2. The bushing of each hinge point adopts premium high manganese steel to prolong the service life of the grab;
3. Grab material weight and grab bucket weight ratio 1.5-1.9, grab ability is strong.
| No. | Model | Crane Capacity (t) | Capacity (m³) | Grab Bucket Weight (t) | Material Specific Gravity (t/m³) | Pulley ratio | Rope Diameter (φmm) |
| 1 | UP1063 | 10 | 6.3 | 3.8 | 1 | 3 | φ22 |
| 2 | UP1041 | 10 | 4.1 | 3.5 | 1.6 | 4 | φ22 |
| 3 | UP1033 | 10 | 3.3 | 3.8 | 2 | 4 | φ22 |
| 4 | UP1027 | 10 | 2.7 | 3.8 | 2.5 | 5 | φ22 |
| 5 | UP1020 | 10 | 2 | 3.8 | 3.2 | 6 | φ22 |
| 6 | UP1610 | 16 | 10 | 5.9 | 1 | 3 | φ26 |
| 7 | UP1667 | 16 | 6.7 | 5.4 | 1.6 | 4 | φ26 |
| 8 | UP1655 | 16 | 5.5 | 5.6 | 2 | 4 | φ26 |
| 9 | UP1644 | 16 | 4.4 | 5.6 | 2.5 | 5 | φ26 |
| 10 | UP1633 | 16 | 3.3 | 5.6 | 3.2 | 6 | φ26 |
| 11 | UP2012 | 20 | 12 | 8.5 | 1 | 3 | φ28 |
| 12 | UP2078 | 20 | 7.8 | 8 | 1.6 | 4 | φ28 |
| 13 | UP2065 | 20 | 6.5 | 7.5 | 2 | 4 | φ28 |
| 14 | UP2050 | 20 | 5 | 8 | 2.5 | 5 | φ28 |
| 15 | UP2040 | 20 | 4 | 7.6 | 3.2 | 6 | φ28 |
| 16 | UP2515 | 25 | 15 | 9.2 | 1 | 3 | φ32 |
| 17 | UP2510 | 25 | 10 | 9 | 1.6 | 4 | φ32 |
| 18 | UP2583 | 25 | 8.3 | 9 | 2 | 4 | φ32 |
| 19 | UP2565 | 25 | 6.5 | 9 | 2.5 | 5 | φ32 |
| 20 | UP2550 | 25 | 5 | 8.6 | 3.2 | 6 | φ32 |
| 21 | UP3218 | 32 | 18 | 13.2 | 1 | 3 | φ36 |
| 22 | UP3212 | 32 | 12 | 12.8 | 1.6 | 4 | φ36 |
| 23 | UP3210 | 32 | 10 | 12.8 | 2 | 4 | φ36 |
| 24 | UP3280 | 32 | 8 | 12.8 | 2.5 | 5 | φ36 |
| 25 | UP3263 | 32 | 6.3 | 12.2 | 3.2 | 6 | φ36 |
| 26 | UP4023 | 40 | 23 | 16.4 | 1 | 3 | φ40 |
| 27 | UP4015 | 40 | 15 | 15.8 | 1.6 | 4 | φ40 |
| 28 | UP4012 | 40 | 12.6 | 15.5 | 2 | 4 | φ40 |
| 29 | UP4010 | 40 | 10.2 | 15.5 | 2.5 | 5 | φ40 |
| 30 | UP4080 | 40 | 8 | 15 | 3.2 | 6 | φ40 |
| 31 | UP5030 | 50 | 30 | 20 | 1 | 3 | φ44 |
| 32 | UP5019 | 50 | 19 | 19.5 | 1.6 | 4 | φ44 |
| 33 | UP5016 | 50 | 16 | 19 | 2 | 4 | φ44 |
| 34 | UP5013 | 50 | 13 | 18.6 | 2.5 | 5 | φ44 |
| 35 | UP5010 | 50 | 10 | 18.8 | 3.2 | 6 | φ44 |
| 36 | UP6338 | 63 | 37.8 | 25.2 | 1 | 3 | φ48 |
| 37 | UP6324 | 63 | 24.6 | 24.2 | 1.6 | 4 | φ48 |
| 38 | UP6320 | 63 | 20 | 23 | 2 | 4 | φ48 |
| 39 | UP6316 | 63 | 16.5 | 22 | 2.5 | 5 | φ48 |
| 40 | UP6312 | 63 | 12 | 22 | 3.2 | 6 | φ48 |
